OVERVIEW

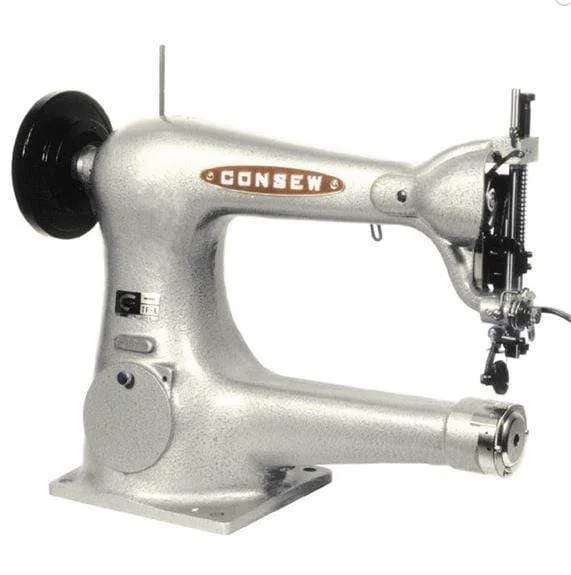

Single Needle, Cylinder Arm, Drop Feed, Lockstitch Machine
With: Long Beak Shuttle, Roller Presser Foot, Left handed Arm & Bed
APPLICATIONS
- This left hand design facilitates special purpose applications that a standard right hand machine will not do
- Specially designed for stitching shoe upper leather as well as stitching other varieties of uneven work
- Suitable for stitching light to medium weight materials
- For sewing such products as leather or vinyl bags, pouches, suitcases, purses, briefcases, various sports equipment, etc.
FEATURES
- Cylinder Arm
- 1800 Stitches per minute
- Roller presser foot
SPECIFICATIONS
| Speed, Max (S.P.M.) | 1800 |
| Clearance Under Presser Foot | 9/32" (7mm) |
| Stitch Length | 5 s.p.i. (5mm) |
| Needle | 16 x 2 |
| Bobbin | Metal 8096 Pre-wound L |
| Stitch Type | 301 |
| Needle Bar Stroke | 1 27/64" (36mm) |
| Hook | 8028 |
| Cylinder Diameter | 1 7/8" (48mm) |
| Cylinder Bed Length | 10 1/2" (266mm) |
