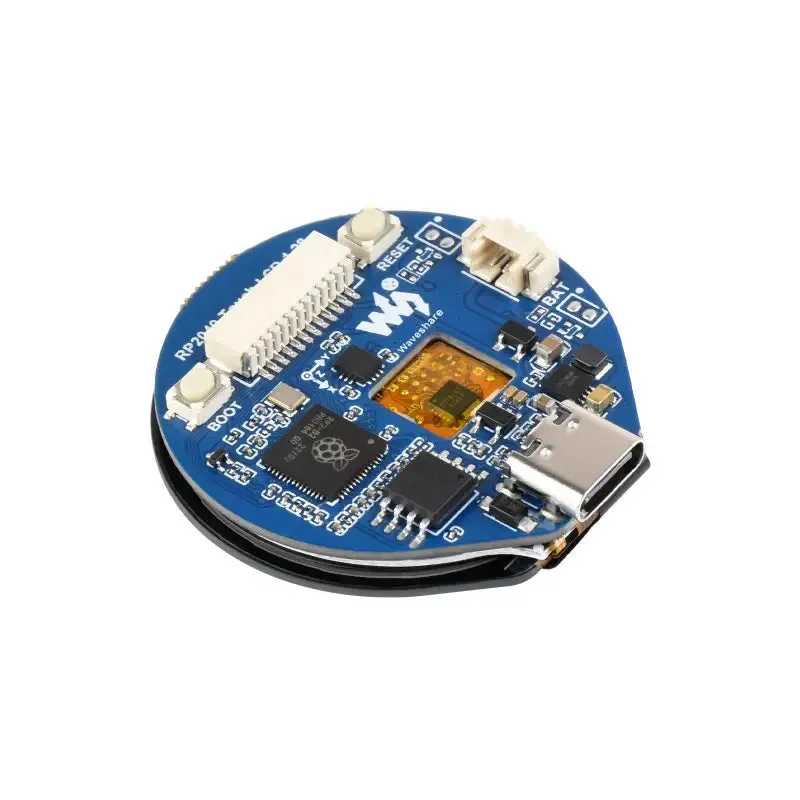

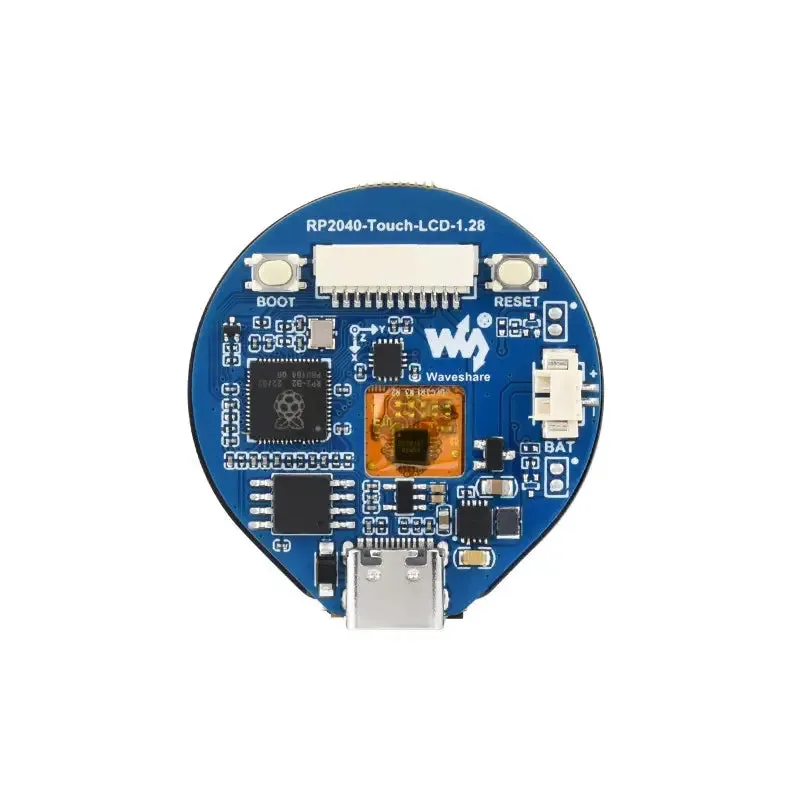

Name: Waveshare RP2040 DevBoard w/ 1.28inch Round Touch LCD, Accelerometer & Gyroscope
SKU: 1724290

Waveshare RP2040 DevBoard w/ 1.28inch Round Touch LCD, Accelerometer & Gyroscope

$ 25.29

$ 0.00

Save: $

Unavailable

Please select combo product attributes

The combo subtotal is $,SAVE$

Waveshare RP2040 DevBoard w/ 1.28inch Round Touch LCD, Accelerometer & Gyroscope
Compact and efficient for microcontroller projects

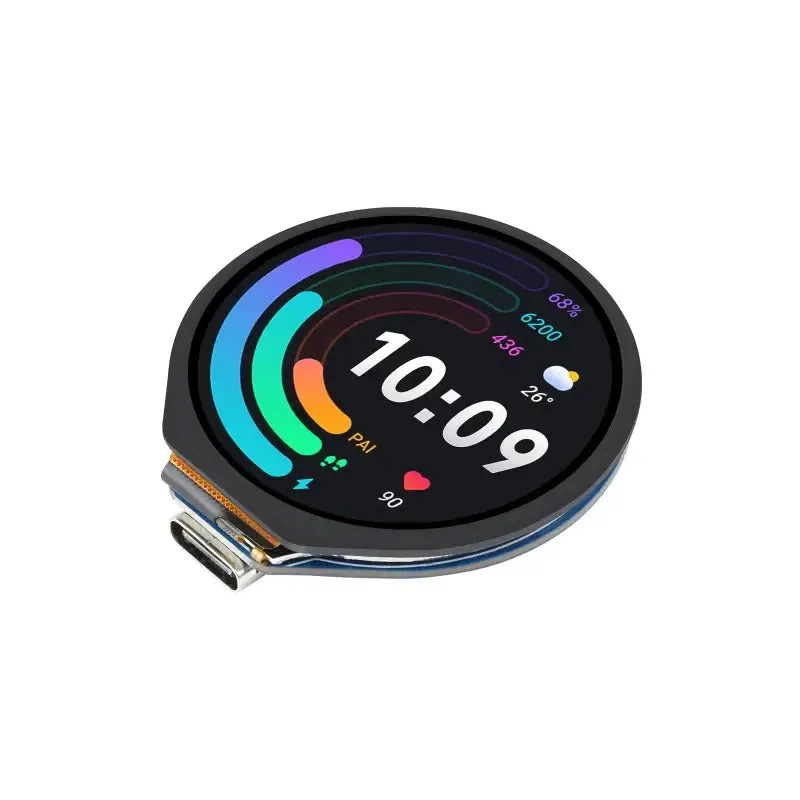

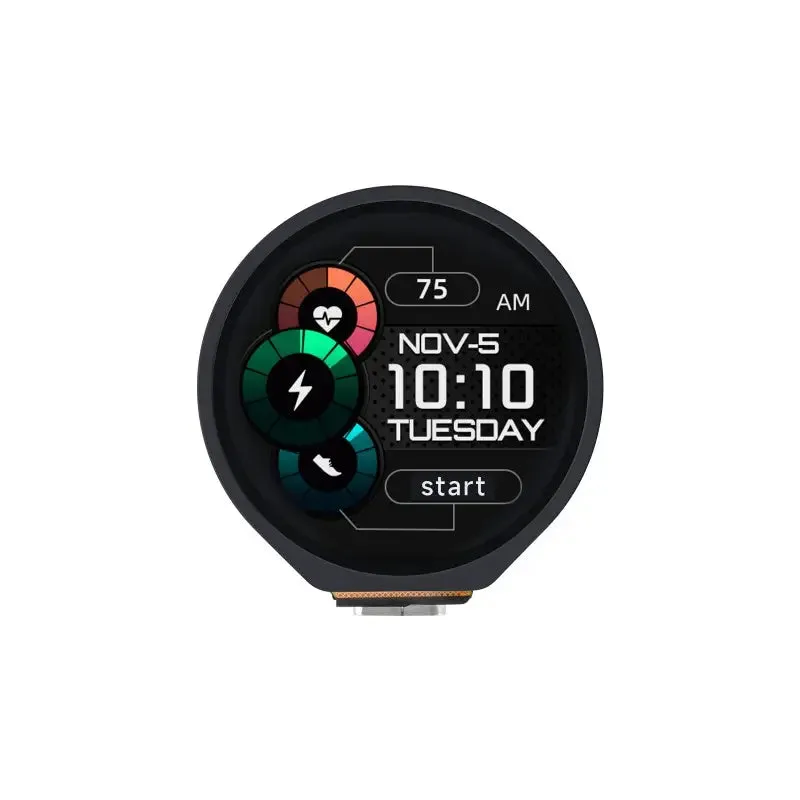

Features a 1.28-inch round touch LCD
Equipped with an accelerometer and gyroscope sensor
Ideal for various applications
Designed for easy user interaction

The Waveshare RP2040 DevBoard w/ 1.28inch Round Touch LCD, Accelerometer & Gyroscope is a compact device designed for efficient development of microcontroller projects.

It features a 1.28-inch round touch LCD for easy user interaction. The board is also equipped with an accelerometer and a gyroscope sensor, enhancing its functionality in various applications.

1x RP2040-Touch-LCD-1.28
1x SH1.0 12-Pin Cable

39.49 x 26.52 mm (L x W)
Display: Φ32.4 mm
Pixel Pitch: 0.135 (H) x 0.135 (V) mm

Website

Waveshare RP2040 DevBoard w/ 1.28inch Round Touch LCD, Accelerometer & Gyroscope - Wiki

LCD

Resolution: 240 (H) RGB x 240 (V)
Touch Chip: CST816S
Touch Port: I2C
Display Chip: GC9A01A
Display Panel: IPS
Display Interface: SPI

IMU

Sensor: QMI8658C
Accelerometer: Resolution: 16 bits | Measuring Range (Optional): ±2, ±4, ±8 ±16 g
Gyroscope: Resolution: 16 bits | Measuring Range (Optional): ±16, ±32, ±64, ±128, ±256, ±512, ±1024, ±2048 °/sec
